    • Blue Sea C-Series Flat Rocker Circuit Breaker - Single Pole

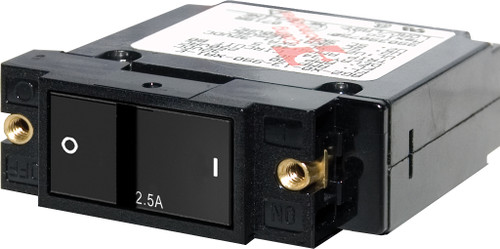

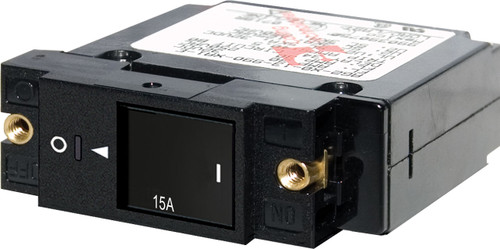

    Blue Sea C-Series Flat Rocker Circuit Breaker - Single Pole
    $62.44
    Rocker actuator is flush in the ON position, eliminating the risk of accidential switching View full description

    This item and any accompanying items are for in-store pickup only.
    Separate orders or contact us at online@trotac.ca
    for special shipping arrangements.

    • Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
    • Color actuator indicates "OFF" position
    • Provides overcurrent protection for inverters, bow thrusters, and windlasses
    • Combines switching and circuit protection into a single device
    • "Trip Free"—cannot be held closed after trip
    • Ignition protected—safe for installation aboard gasoline powered boats

    Specifications

    Amperage 15A AC - 80A AC
    15A DC - 80A DC
    Actuator Style Flat Rocker
    Poles 1
    Maximum Voltage 240V AC
    48V DC
    Circuit Breaker Type Magnetic Hydraulic - trip free
    Terminal Stud 1/4-20 Tin-Plated Brass
    Terminal Stud Torque 35 in-lb (3.95 Nm)
    Interrupt Capacity 3000A @ 120V AC
    3500A @ 240V AC
    5000A @ 32V DC
    Minimum Operating Temperature -40° C
    Maximum Operating Temperature 85° C
    Mounting Screw 6-32 Stainless Steel
    Mounting Screw Torque 6 in-lb (0.68 Nm)
    Switching Cycles 10000
    Weight 0.28lb (0.13 kg)
    Brand:
    Blue Sea Systems
