    • Blue Sea Analog Meter Shunt

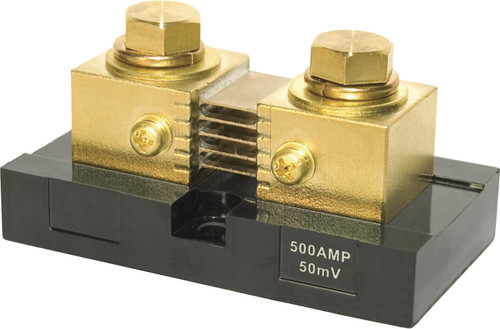

    Blue Sea Analog Meter Shunt
    $67.70 - $107.54
    For continuous operation, it is recommended that shunts not to be run at more than two-thirds (66%) the rated current under normal conditions View full description

    This item and any accompanying items are for in-store pickup only.
    Separate orders or contact us at online@trotac.ca
    for special shipping arrangements.

    • For use with DC Ammeters
    • For continuous operation, it is recommended that shunts not to be run at more than two-thirds (66%) the rated current under normal conditions
    Specifications
    Continuous Duty66% of Rated Current
    Full Scale50 Milivolts
    Intermittent Duty300% @ 3 Seconds
    100% @ 5 Minutes
    Ratio50A DC/50mV DC
    Shunt TypeResistive, Manganin Metal Element
    Weight0.20lb (0.09 kg)
    Brand:
    Blue Sea Systems
