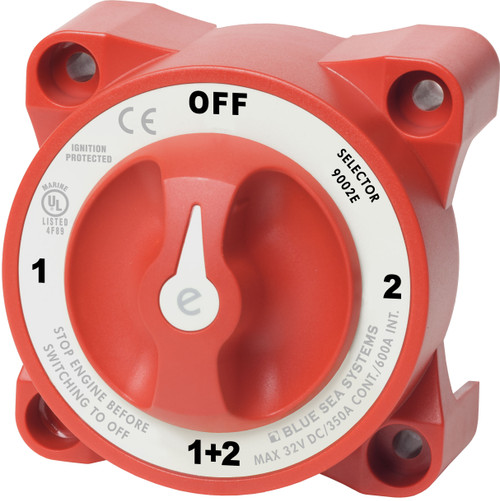

Switches isolated battery banks to all loads or combines battery banks to all loads
| Specifications | |
|---|---|
| Switch Type | Selector 4 Position |
| Color | Red |
| Switch Positions | 4 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 30 sec | 900A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 0.77lb (0.35 kg) |
| Weight | 0.77lb (0.35 kg) |
Brand:
Blue Sea Systems
