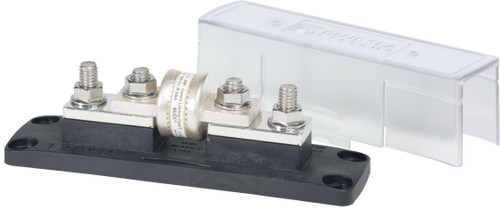

    • Blue Sea 5503 ANL Fuse Block with Insulating Cover - 35 to 750A

    SKU:
    BSS5503
    Blue Sea 5503 ANL Fuse Block with Insulating Cover - 35 to 750A
    $86.88
    Cover included View full description

    This item and any accompanying items are for in-store pickup only.
    Separate orders or contact us at online@trotac.ca
    for special shipping arrangements.

    • Cover included
    • Accepts 5/16" (M8) ring terminals
    • For use on systems up to 32 Volts DC
    • Swing out design allows replacement of the fuse without removing fasteners
    • Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
    • UL 94-V0 base resists high heat
    • Insert molded studs ensure secure fuse mounting
    • Insulating cover satisfies ABYC/USCG requirements
    • Cover breakouts allow wire access in any direction
    • Fuse sold separately
    Specifications
    Maximum Voltage32V DC
    Stud Size5/16"
    Base MaterialReinforced Polycarbonate
    Fuse Mounting BlocksTin-Plated Copper
    Maximum Cable Size4/0 AWG
    Maximum Torque107 in-lb (12.09 Nm)
    Stud Torque107 in-lb (12.09 Nm)
    Terminal Stud Size5/16" - 18 (M8)
    Weight1.06lb (0.48 kg)
    Brand:
    Blue Sea Systems
