    • Blue Sea 4162 10A Push Button LED Ring Switch OFF-ON Red

    SKU:
    BSS4162

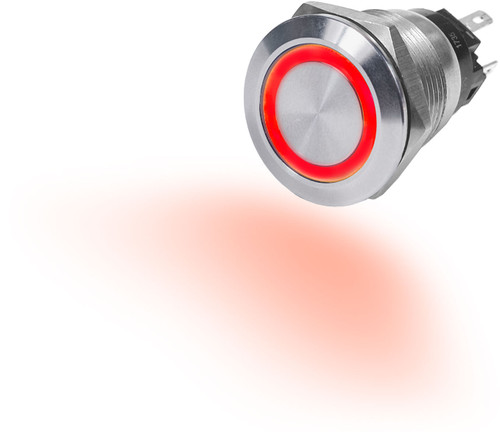

    Blue Sea 4162 10A Push Button LED Ring Switch OFF-ON Red
    $35.37
    Single Pole Double Throw or Single Pole Single Throw View full description

    This item and any accompanying items are for in-store pickup only.
    Separate orders or contact us at online@trotac.ca
    for special shipping arrangements.

    • 10A continuous
    • Single Pole Double Throw or Single Pole Single Throw
    • Can be wired for normally open or normally closed
    • Available in Blue & Red
    • Available in momentary and non-momentary
    • Installs with .110inch quick connects (included in retail package)
    Specifications
    Action OFF-ON
    Amperage10A @ 12V DC Resistive
    3A @ 12V Inductive
    Nominal Voltage12V DC
    Maximum LED Operating Current20mA
    Minimum Operating Temperature-30° C
    Maximum Operating Temperature70° C
    Minimum Storage Temperature-55° C
    Maximum Storage Temperature85° C
    IlluminationIndependent - Separate contacts for LED power
    Max Panel Thickness0.31in (7.87 mm)
    Mounting Hole¾" (19mm)
    Switching Cycles40,000
    Termination5 - 0.110inch Quick Connect terminals
    Weight0.20lb (0.09 kg)
    Brand:
    Blue Sea Systems
